Technical Data : Engine Type : Inline-4 Cylinders, 4-stroke Diesel Engine Bore x Stroke : 105 mm x 124 mm Combution System : Direct Injection Aspiration : Turbocharged Starting System : 24V Eletrical Starter Cooling System : Heat Exchanger Displacement : 4.29 L Oil Capacity : 6 liters Rotation : Anti-clockwise Facing Flywheel Size of…
Technical Data : Input power: three-phase, 380V±10% 50Hz/60Hz Output power: AC380V ± 10% 50Hz, AC220V ± 10% 50Hz Security : leakage protection (action current ≤ 30mA), overcurrent protection, fuse protection. Part list: 3PH AC adjustable power supply, DC power supply, DC measurement instrument, AC measurement instrument and digital multi-function wattmeter, Motor power supply and test…
Technical Data : Power output: ± 5 V dc voltage source ± 12 V dc voltage source Part list: Workbench, Power Supply, Signal generator, Digital Circuit common experiment box, Gate circuit experiment box, Trigger circuit experiment box, Digital logic circuit experiment box, Pulse circuit experiment box, Components box, Analog circuit experiment box, MCU module, Convert…
Technical Data : – Engine type : 4-stroke,2-cylinders, OHC – 20.8 HP power – Type of Air Cooled 4 Stroke Engine, OHV Double Cylinder (90 V-Twin), Horizontal Shaft – Cylinder volume 688 cc – Bore x Stroke 78 x 72 mm – Compression Ratio 9.3: 1 – Maximum Torque 4.93kgfm (48.3 Nm) / 2500rpm –…
Features : 52” shearing length; 16 gauge mild steel capacity; 4-sided high chromium blades can be turned and also resharpened to extend use; Front supports assist with alignment, keeping material true to the blade; Technical Data : Width: approx. 1320 mm Max. Shearing thickness: approx. 1.5 mm Back gauge range: 0-700 mm
Technical parameter 1. Projection screen (1) Dimension (mm):φ350 (2) Projection screen rotation range:0-360° (3) Min. Rotation angle: 1′ (4) Rotation angle accuracy:4′ 2. Working table: Dimension (mm) 400×150 X-axis travel(mm)0~200 Min. travel 0.001mm Y-axis travel(mm)0~80(focusing) Z-axis travel(mm)0~150 Min. travel 0.001mm X,Ycoordinate indicating value accuracy:(3+L/75)μm,(L is Measured length , unit is mm) 3. Objective: Magnification: 10×(standard…

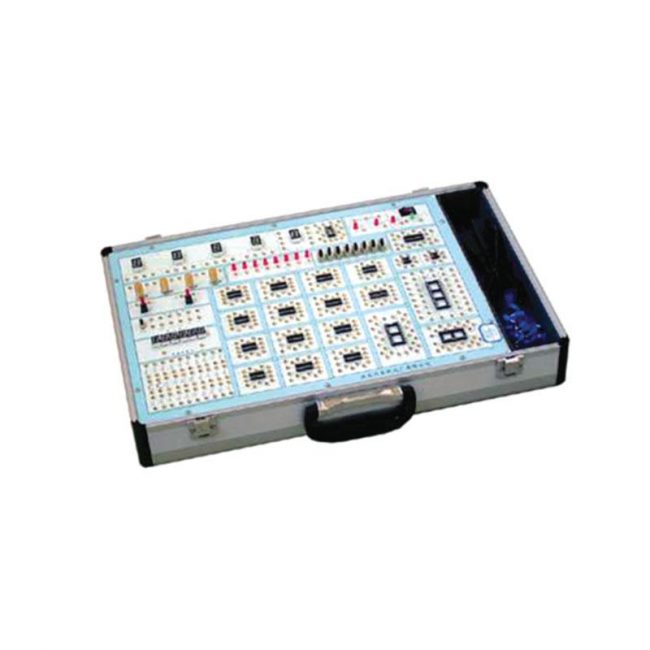

Technical Data : Input power: single-phase, AC 220V±10% , 50Hz/60Hz Output power : DC+5V continuously adjustable, DC±12V One set adjustable signal source, one set of fixed pulse. Part list: Digital experiment box, Power area, manual pulse source, signal generator, frequency meter unit, Resistance part, capacitance part, Integrated circuit, Logic level show, logic level output unit,…

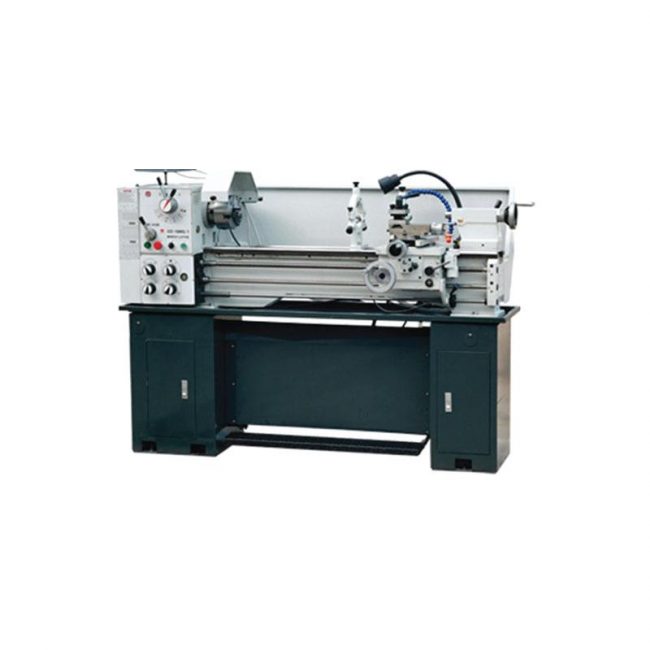

Technical Data : Swing over bed : φ355 mm Swing over carriage : φ220 mm Swing over gap : φ500 mm Width of bed-way : 186 mm Distance between centers : 1000 mm Taper of spindle : MT5 Spindle diameter : φ38 mm Range of speed : 70~2000 rpm Step of speed : 8 Head…

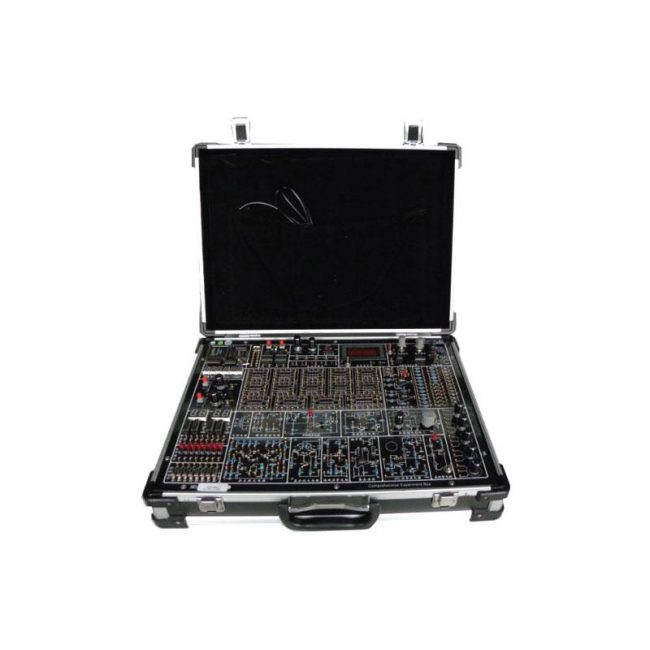

Technical Data : Input voltage: Single phase AC220V, 50/60Hz. Configuration list: Training platform, AC220V main control power box, AC220V power box, Voltage stabilized power supply module, Adjustable DC voltage stabilized power supply module, AC power supply, Signal generator module, Measuring instrument module, Mask plate hanging line experiment module, Analog circuit experiment box, 14P Digital chip…

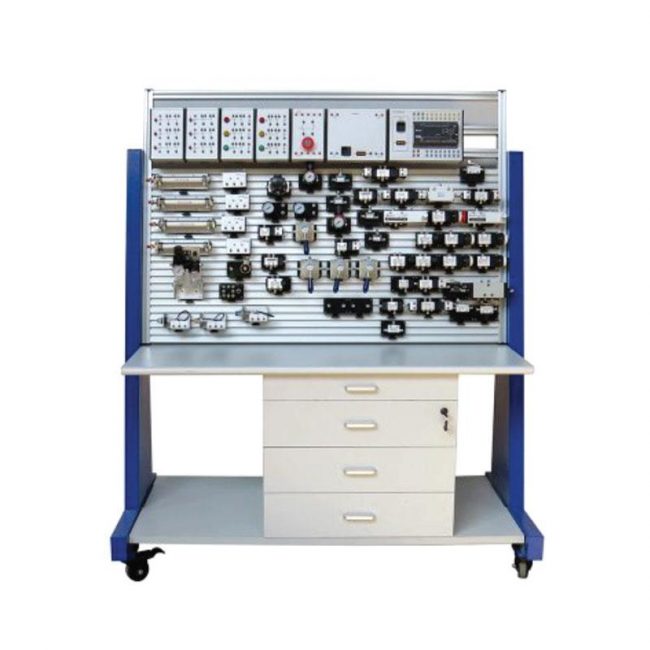

Technical Data : DC power: Input, AC220V, 50Hz/60 Hz Output: DC 24V/3A Air compressor: Power: AC 220V±10% 50Hz/60Hz Motor power: approx. 480W Nominal volume: approx. 6L normal Output: 0.6 Mpa – 0.85 Mpa Noise degree: approx. 66 dB” Part list: Workbench, Silent Air compressor, Manifold block (air terminal), Double-acting cylinder, Single- acting cylinder, 5/3 solenoid…
