Technical Data Composition: Maximum voltage: 30A, Working voltage: DV12V Relay capacity : approx. 30A, Lamp : approx. 1.4W and 55W Main fuse : approx. 30A, Relay Fuse : approx. 10A, 1.0SQ Jump wire : min 48 set Training Contents : Minimum 2, Manual Book, Modul Automotive Basic Electrical

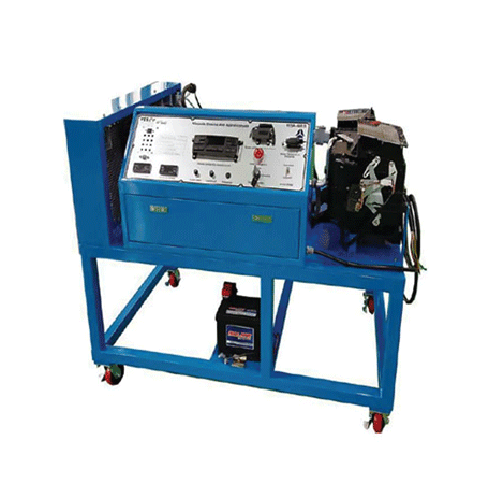

Technical Data : – Compressor : approx. 5 HP motor, inverter RPM control type. – HFC -134a. – Composition : Compressor, condenser, dryer, expansion valve, the orifice tube,the evaporator, Blowers, piping, cooling fans, the unit, the control panel,Motor with speed control, pressure (high-1, low-3), 7 temperature gauge etc. – 10 Fault insertion available – 3…
Technical Data : Compressor: approx. 5HP motor, inverter RPM control type. Specification: Composition : Compressor, condenser, dryer, expansion valve, the orifice tube, the evaporator,Blowers, piping, cooling fans, the unit, the control panel, Motor with speed control, pressure (high-1, low-3), approx. 7 temperature gauge, etc. approx. 10 Fault insertion available approx. 3 PCB board available to…
Specification: This Trainer consist of: 1. Universal Alarm 2. Central Lock 3. Power Windows 4. Remote Control 5. Battery approx. 12V/32AH 6. Cable jumper Instruction Manual

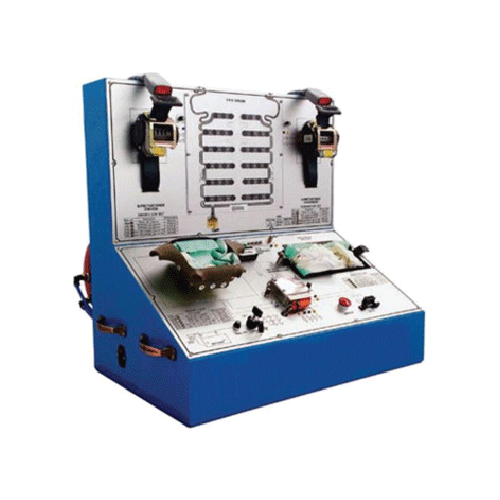

Technical Data : – Able to understand composition of air bag system of automobile and fundamental principles. – Understanding the linkage among Safety belts, airbags, PPD (Passenger Presence Detector) and acknowledging operation condition. – Measuring change in waveform in accordance to resistance by adjusting the resistance from the seat belt and air bag. – Able…

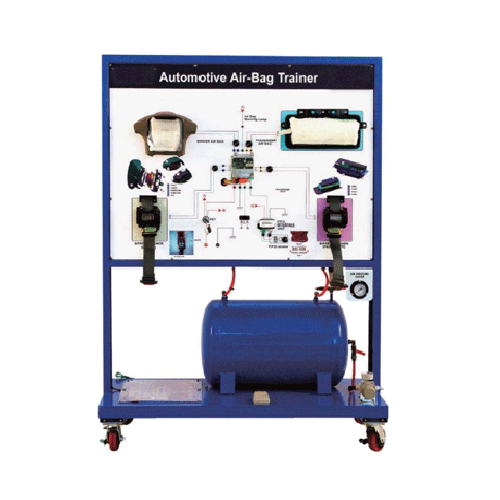

Specification: 1. Air bag sensor consist of: – Frontal driver and passenger – Side air bag sensor 2. Air bag actuator/Air Generator consist of: – Driver frontal/longitudinal air bag – Passenger frontal/longitudinal – Passenger and driver side air bag – Driver and passenger presentation belt 3. Frontal and side crash mini car model – Frontal…

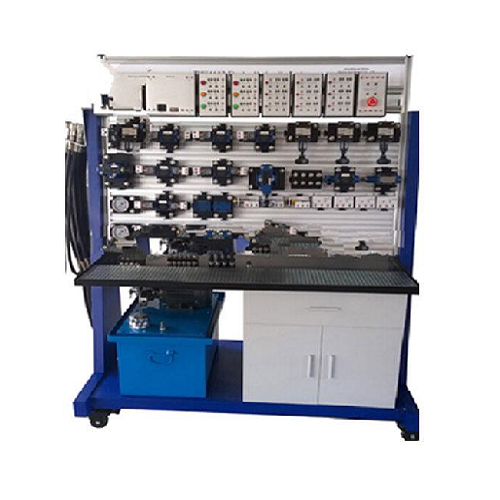

Spesifikasi : Hydraulic power unit: Work power: AC:380V Frequency:50Hz Safety rate-limiting range:1000- 1500 r/min Power:1.1KW Flow:4.5L/min Oil box volume: 35Ltr Gear pump system: motor pump using open shelf installation, structure compact, low noise, easy to maintenance Part list: Training workbench, Hydraulic station, Double-acting hydraulic cylinder, One-way throttlevalve, Throttle valve, Pressurerelief valve (directly actuated), 4/3 Way…

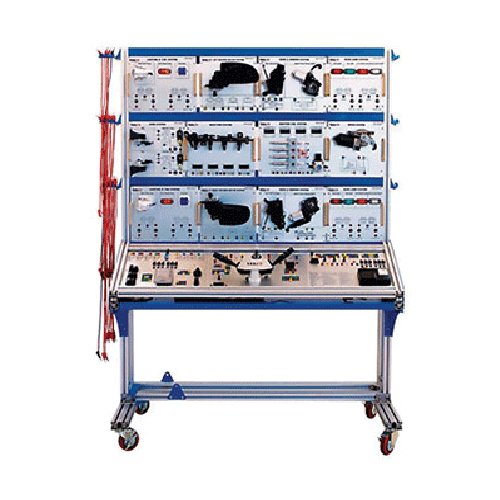

Composition 1) Light circuit practice module – Made by LED light system (Head light, Turn signal, Taillight) – Experiment panel should be carved in AL coating panel and printed – Consist of a headlight, a multi-function switches, relays,connection terminals and so on. 2) Side Mirror folding practice module – Arrangement of parts of Side Mirror…
Feature: This equipment is effective to understand and educate ABS system amd or for maintenance, inspection training. Able to measure the pressure and voltage when loading/unloading with a load panel. Specification: ABS, Engine control, TCS with ECU, Wheel speed sensor, Master cylinder, Vacuum Brake booster, 4 x inverter. AC 380 V, 5 x approx, 1HP…
