Technical Data :
1. Power supply
Voltage range: From 4.0V to 6.5V(Supply from battery)
2. Signal
Frequency: From 9200MHz to 9500MHz
Polarization: Horizontal
3. Antenna
Vertical beam width: ±12.5 degrees
Horizontal: 360 degrees(Omni directional)
4. Reception: Effective receiver sensitivity(ERS):Better than -50dBm
Recovery time: 10 μs or less
5. Transmission
Modulation method: Q0N(Pulse Modulation)
Form of Sweep: Saw Tooth
Forward of Sweep Time: 7.5±1.0μs
Return Sweep Time: 0.4±0.1μs
Response Signal: 12 Sweeps
Power(EIRP): Not less than 400mW(+26 dBm)
Delay: 0.5μs or less
6. Battery
Battery Type: Lithium Non-Rechargeable Sealed Battery
Nominal Voltage: 6V~7.5V
Capacity: Stand-by condition minimum 96 hours;
Transmission 8 hours
7. Temperature range
Stowage: -30ºC~+70ºC
Ambient: -20ºC~+55ºC
Standard accessories :

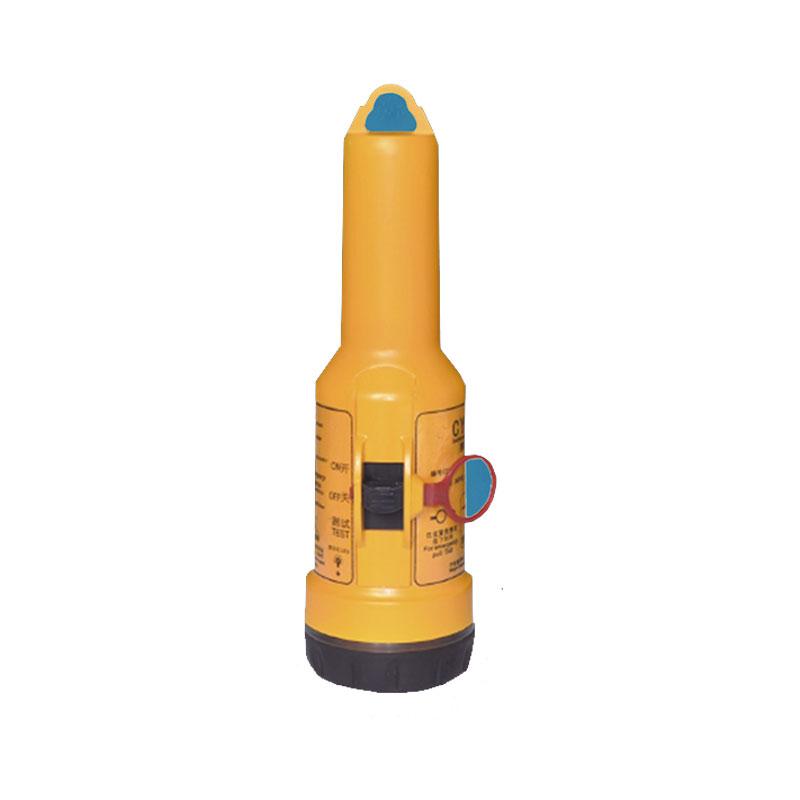

– Transponder
– Tele-Pole
