Main technical features:

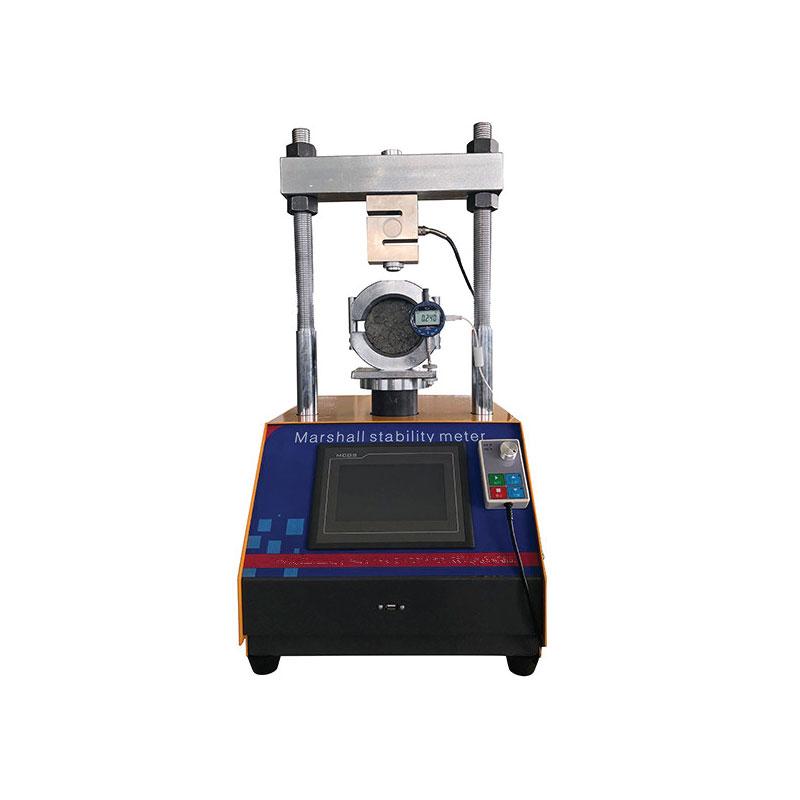

1. Marshall Stability Tester has functions of parameters setting, measurement calibration, automatic test control, automatic data collection and timer. The control unit will collect the stability and flow value for sample and judge the peak value automatically.
2. LCD display shows the stability, flow value, curves, result and time. The test effect is intuitive.
3. 100 groups of test data (1 group : 100 result test) and test time can be stored in the instrument and callout whenever needed. All procedures will be controlled automatically.
4. RS232 communication port. Realize the communication with upper computer. The data process, store, print and display can be controlled by a PC. Also the test procedures can be controlled by a PC.
5. Marshall Stability Tester also has functions for manual lifting, lowering and stopping. Convenient to use.
6. Note: 100mm sample clamp is in standard accessory list for this instrument. Users can also select clamps as blow:
1). Sample clamp: 150mm, one piece
2). Sample clamp: 100mm and 150mm, one for each.
5. Marshall Stability Tester also has functions for manual lifting, lowering and stopping. Convenient to use.
Specification:
Maximum load 50kN
Measuring range ≤40kN
Measuring bias ≤±0.1kN
Display LCD , approx. 800×480
Overload protectionPlaten Speed approx. 6-60 mm/min
Automatically protect when load is over 39k
Nvertical deformation(flow value) Range 0~20mm,
bias ≤±0.05mmCommunication port RS232
Power supply AC220V±10%,50Hz
Ambient temperature 0ºC~60ºC
Motor power max. 1100 watt
