Technical Data : Trainers and its component consist of: 1. Engine 4 Cylinder, In-line 16 Valve, VVT-i, Capacity approx. 1.3L 2. Electronic Ignition 3. Electronic Fuel Injection 4. Data Link Connector 5. Starting System 6. Charging System 7. Cooling System 8. Fuel tank capacity approx. 8 L 9. Battery approx. 12V/50AH Instruction Manual
Technical Data : – Educational Model for operating F/F Type Manual Transmission and Power Train System Structure of Gasoline Engine Vehicle. – Each incised section is painted with different colors for education efficiency. – It is able to show the movement as same as actual car by AC 220V motor operation. – Composition : aprrox.…
Specification: 1. Gasoline Engine (refurbhised) : type in-line, four cylinder, four stroke 2. Oil pump, Alternator, intake and exhaust manifold 3. Spark plugs 4. Engine is mounted on a frame with castors Instruction Manual

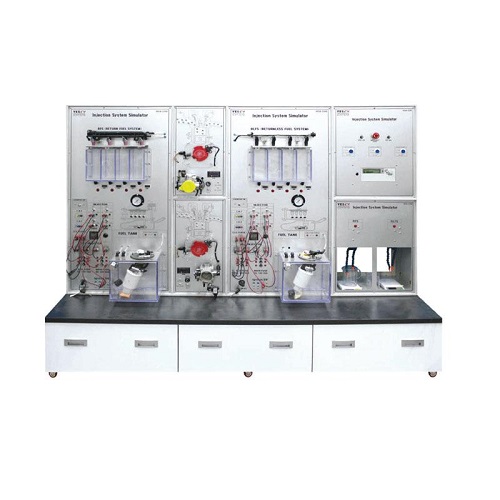

Spesifikasi : Injection System Module with Auto Fault – Installment of 2 kinds of injection system (fuel return system, fuel return less system) – Control of fuel pressure regulator and injecting place pressure changes – Measurement: 1. output waveform and practice injection system wiring 2. injection state and difference of injection types 3. injection quantity…
Technical Data : • Mobile stand on fourwheels • Gasoline injector engine management system (MPI) with multipoint petrol injection installed in upper part of stand • Stand allow to monitoring the following – Fuel supply system – Amount of injected fuel – Fuel pressure of the fuel pump • Construction of the fuel pump and…

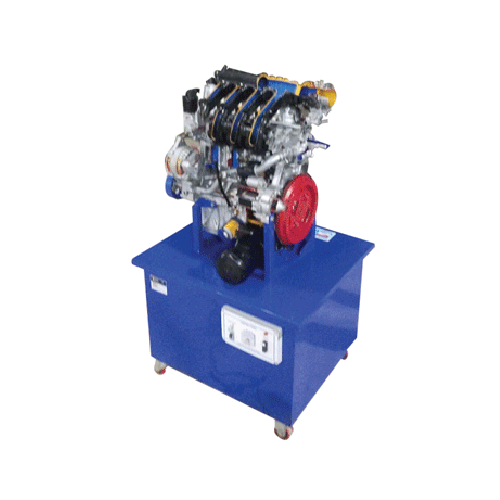

Technical Data • Educational model for 1500~2000 cc Gasoline Direct Injection (GDI) Engine Specification • Consist of GDI Engine 4 cylinders (Refurbhised engine), AC 220V Motor, Controller, Emergency Switch, Safety Fuse, Light. • Instruction Manual
Technical Data – Educational model for gasoline carburetor engine/ structure of the system. – Explanation for both each parts function description and operating principle. – Enhance the educational effect by coloring differently on each parts. – Composition : 4 cylinders gasoline engine assy. (refurbhised engine) – Instruction Manual
Technical Data : Trainers and its component consist of: 1. Sensors and Actuators 2. Electronic Control Unit (ECU) 3. RPM meter and Indicator lamp 4. Data link Connector 5. Driven motor and speed regulator 6. Battery approx. 12V/ 32 AH Instruction Manual
Specification: 1. Motorized throttle unit 2. Full Electronic Cruise ECU 3. Full Electronic Simulated ECM 4. 3 Phase asynchronous motor simulated fuel engine plant 5. Drive wheel simulated powertrain 6. Sensor digital and analog for cruise panel cluster 7. Sensor actuator measuring point panel cluster Instruction Manual
Technical Data : ■ Able to check the value of Interior ABS, Engine (speed, pressure gauge), EPS (lighting) automotive sensor on ECU by eliminating the entire seats in the back side of half of the vehicle. Specification Composition 1) Remove all the seats behind half of actual automobile – Vehicular underbody frame, control frame –…
